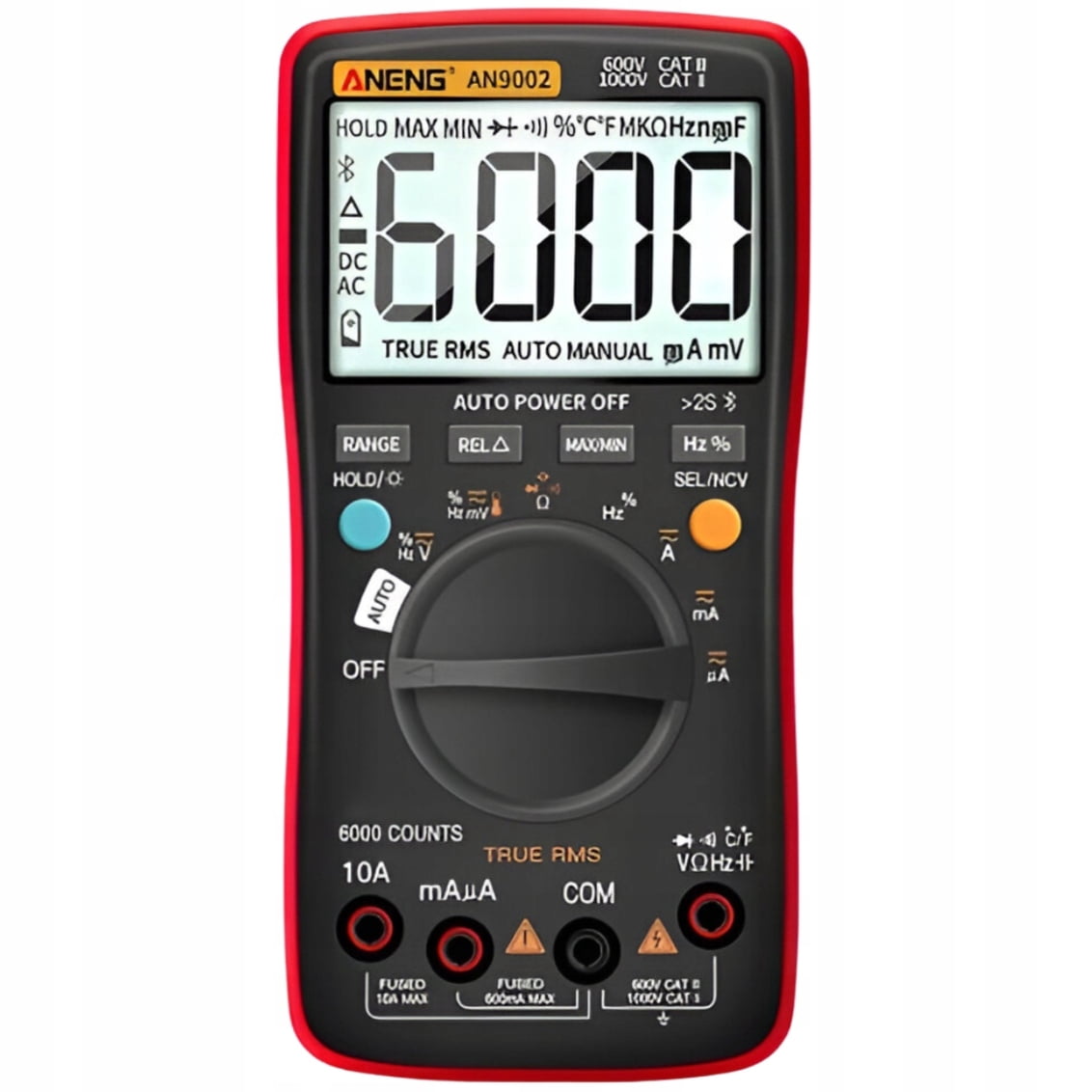

• Digital Multimeter AN9002 PRO

  Color: Red and Black

  ✅The universal measuring device can be used to measure AC/DC voltage, AC/DC current, temperature, resistance and frequency.

  ✅The Aneng AN9002 multimeter is also equipped with many additional functions, such as LED tester, true RMS, hold function and screen backlight.

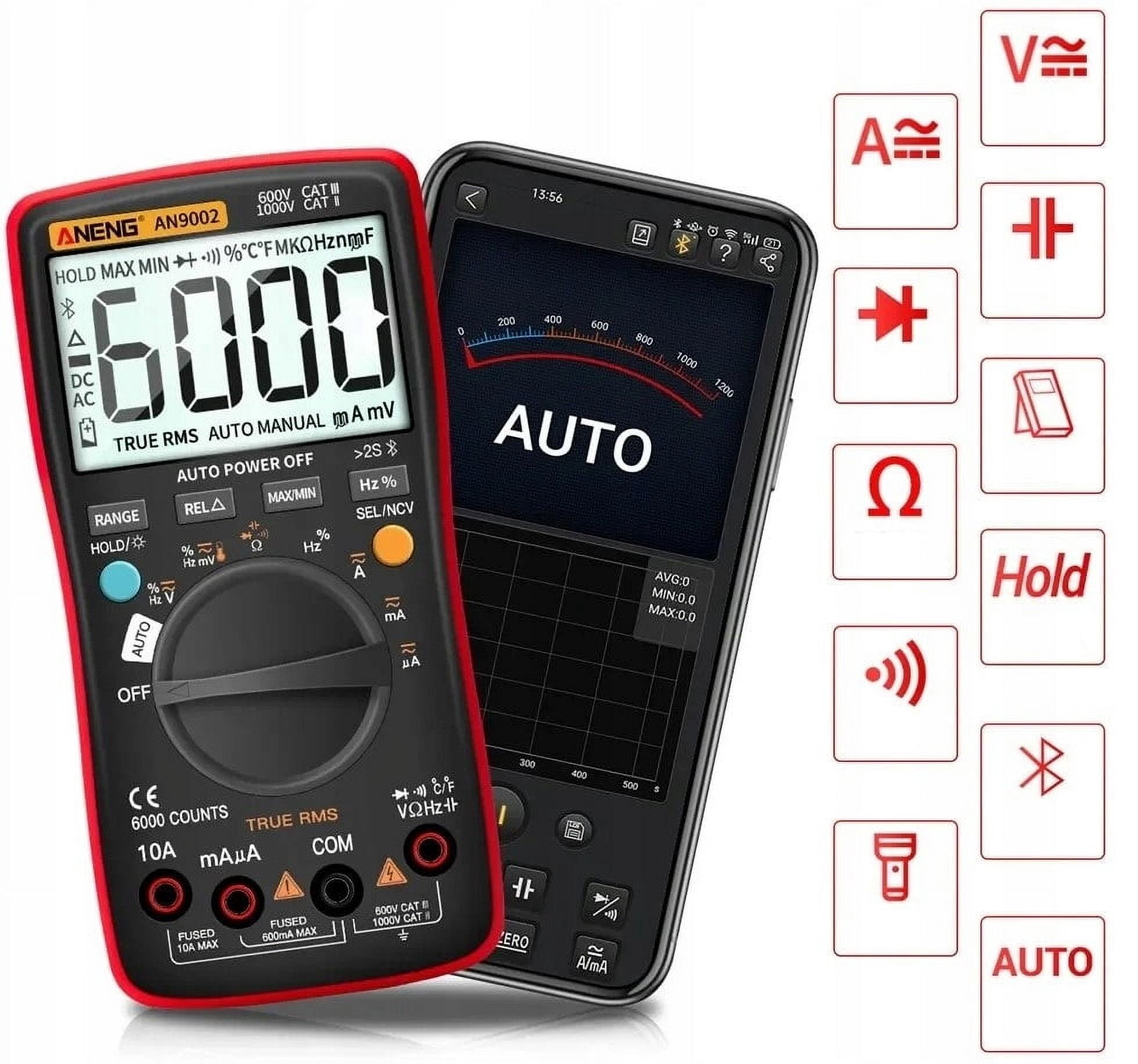

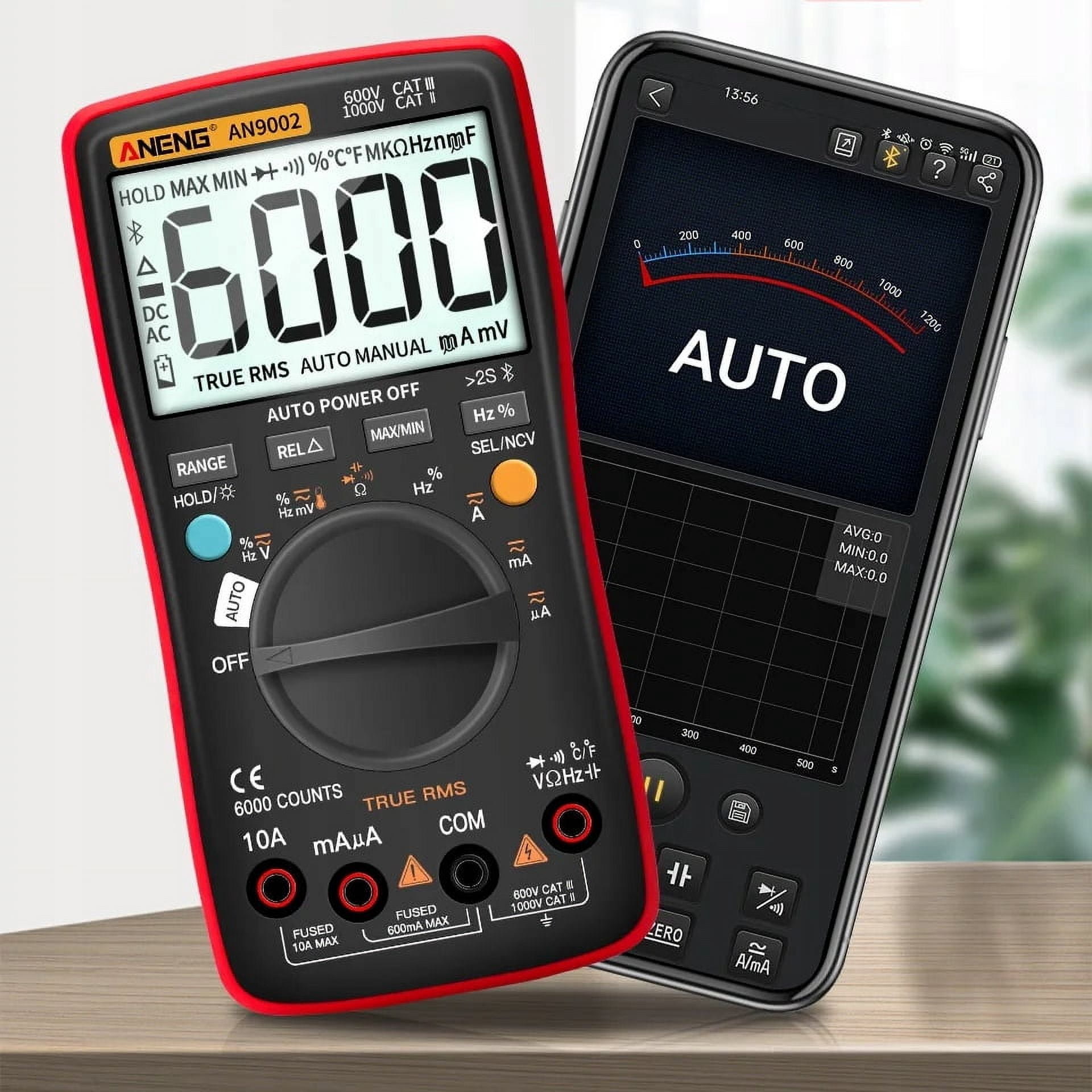

  ✅Built-in Bluetooth module enables wireless connection between the device and a dedicated application, through which we can observe the changes in parameters on the chart.

  ✅The maximum indication value of the AN9002 instrument display is 6000.

  ✅The device allows manual or automatic change of the measuring range.

  ✅It will play an outstanding role in many fields such as electronics, electrical engineering, diagnostics, maintenance, etc.

  ✅The PRO version contains additional elements of the kit.

• ➡  A series of measurement functions

  The universal multimeter Aneng AN9002 is equipped with many functions, making it an extremely useful device in diagnostic work.

  ➡ The characteristics of Anneng AN9002:

  1. DC voltage measurement (DC)

  2. AC voltage measurement (AC)

  3. Measurement of direct current (DC)

  4. AC current measurement (AC)

  5. Temperature measurement

  6. Resistance measurement

  7. Frequency measurement

  8. Capacity measurement

  9. Connectivity testing

  10. Diode testing

  11. NCV testing

  12. True effective value

• ➡ Other product features:

  Automatic or manual adjustment of measurement range

  Large, easy to read, and backlit LCD display screen

  Maximum reading 6000

  Screen backlight

  Built in Bluetooth module

  Measurement results can be saved by communicating with dedicated applications

  Record of maximum and minimum values during the measurement process

  Options for observing parameter changes in the application's chart

  Maintain function (stop the indication on the instrument screen)

  Automatic shutdown

  Low battery indicator

  Can set temperature measurement in Celsius or Fahrenheit

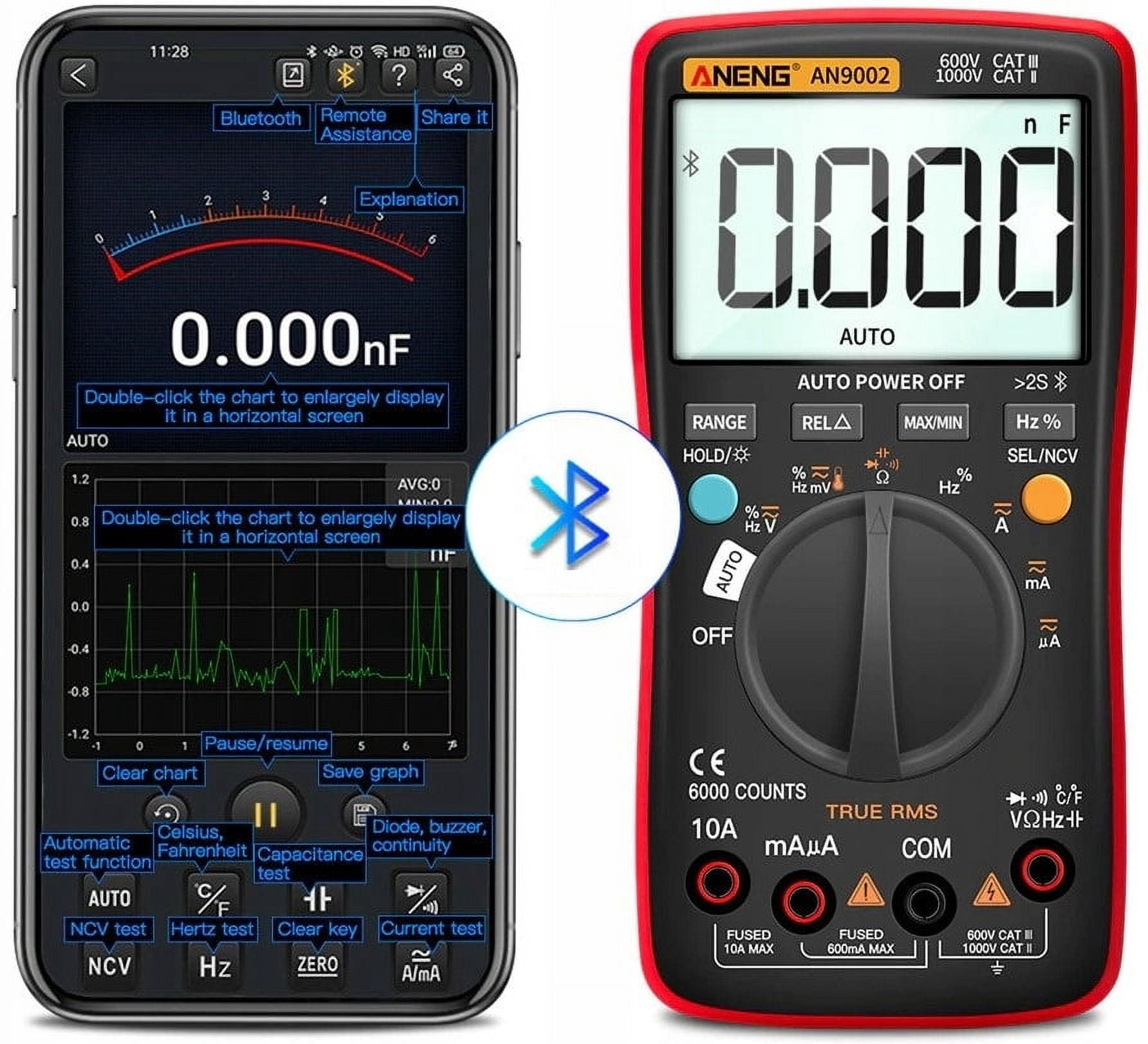

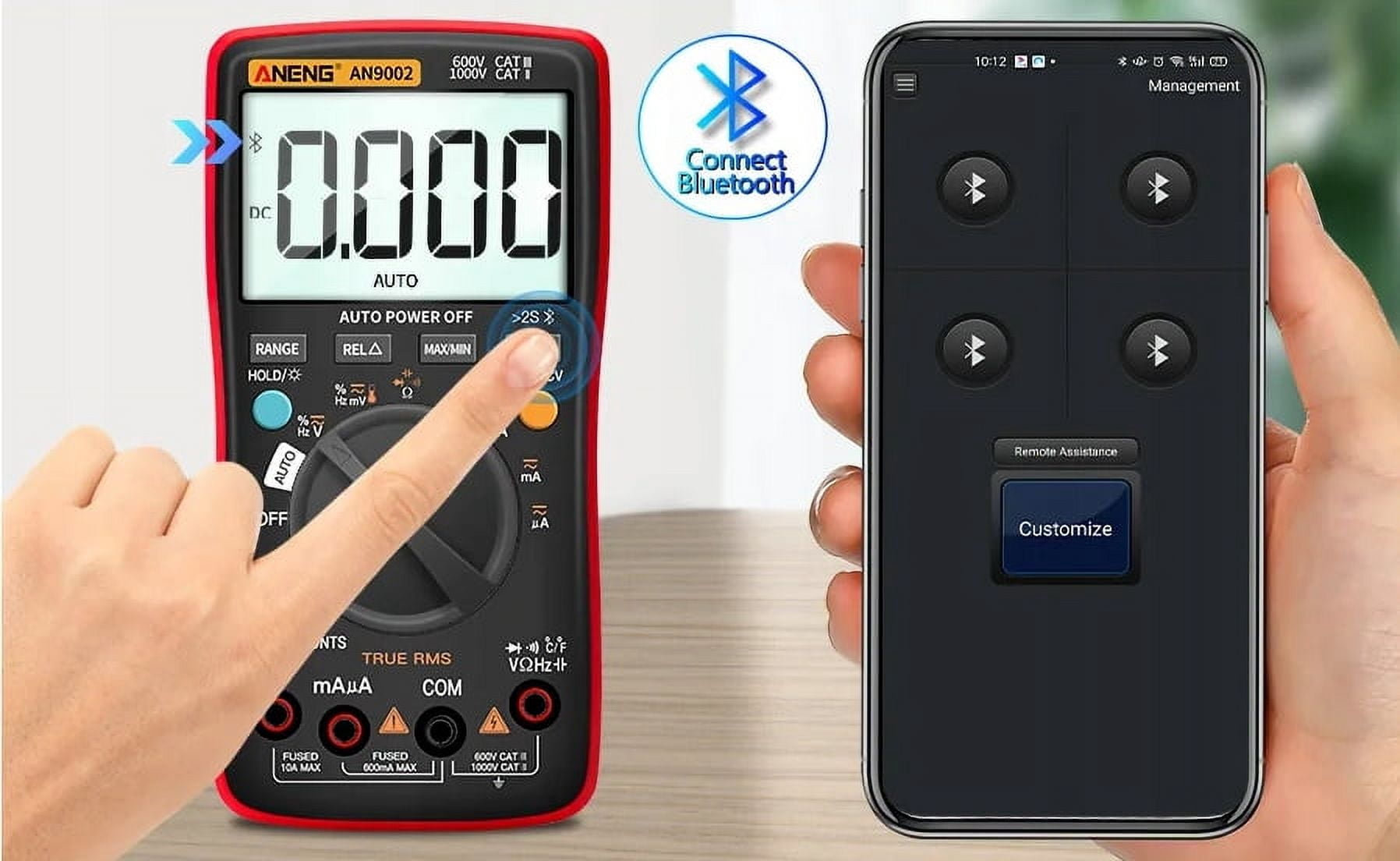

• ➡  Built in Bluetooth module

  The Aneng AN9002 has a built-in Bluetooth module, making it stand out among other multimeters in the market.

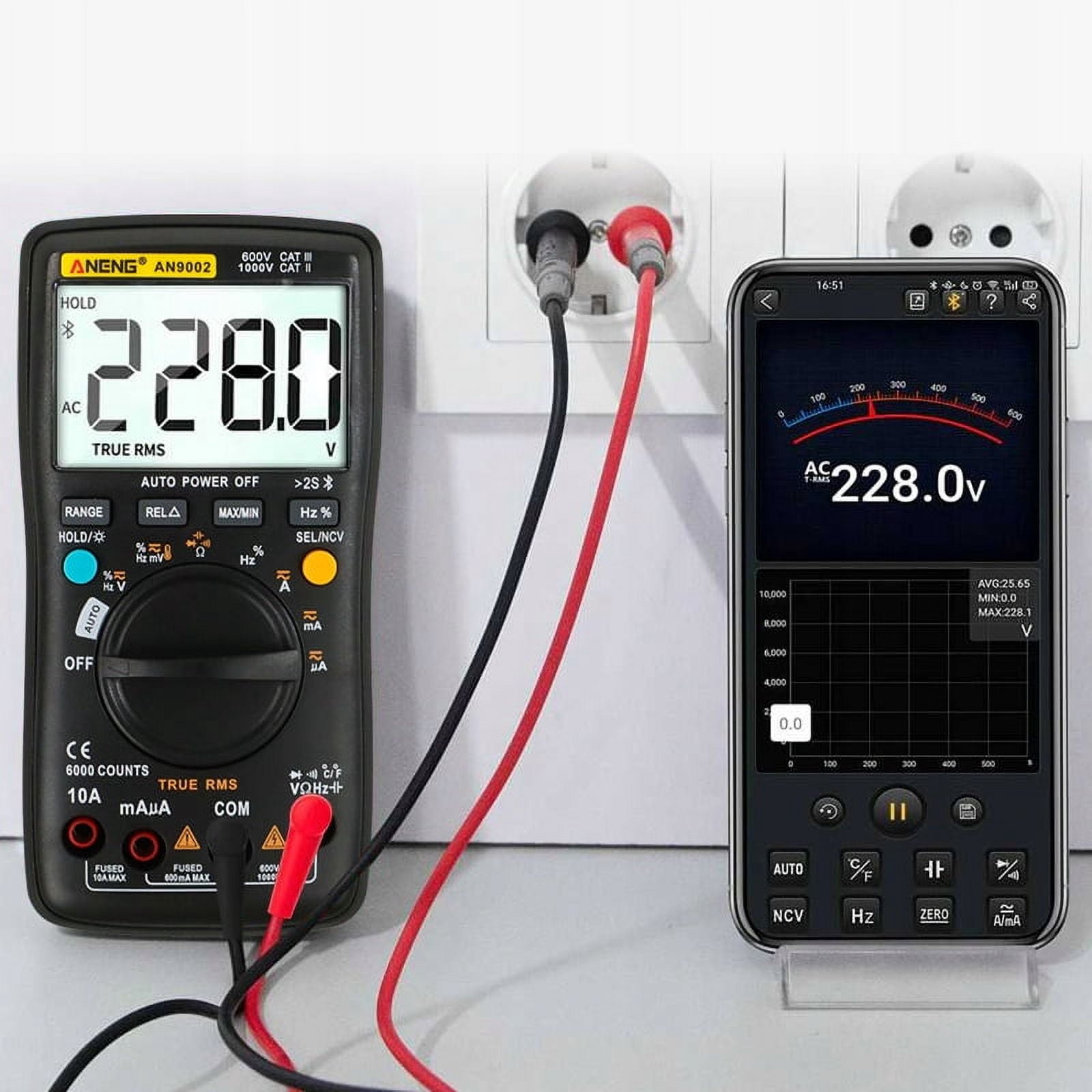

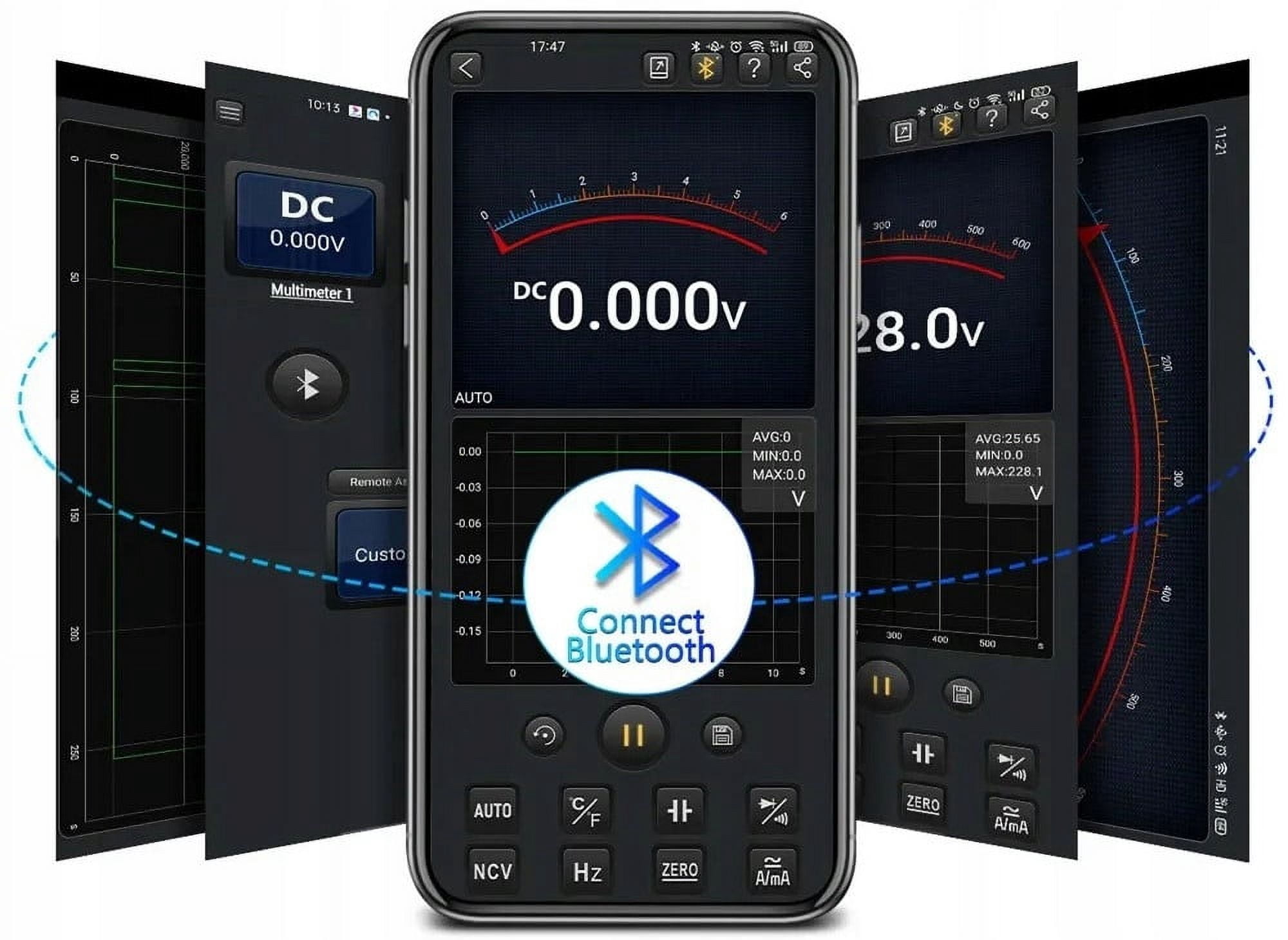

  This module allows you to wirelessly connect your device to specialized applications. Through this application, we can observe changes in parameters on charts on mobile phones or tablets, and also save measurement results to files.

• ➡  power supply

  The AN9002 universal measuring equipment is powered by two 1.5V AA batteries.

  ➡  LCD display screen

  This instrument is equipped with a backlit LCD screen that can display measurement results.

  ➡  Compact size

  This multimeter has a small volume and is very convenient to use, so you can carry it with you anytime.

• ➡  Specifications:

  DC voltage measurement: 60mV/600mV/6V/60V/600V/1000V ± (0.5%+3)

  AC voltage measurement: 60mV/600mV/6V/60V/600V/750V ± (1%+3)

  AC current measurement: 600uA/6000uA/60mA/600mA/6A/10A ± (1.5%+3)

  DC current measurement: 600uA/6000uA/60mA/600mA/6A/10A ± (1.2%+3)

  Temperature measurement: -20 ℃ to 1000 ℃ (4F to 1832 ℉) ± (2.5%+5)

  Resistance measurement: 600 Ω/6k Ω/60k Ω/600k Ω/6M Ω ± (0.5%+3), 60M Ω ± (1.5%+3)

  Capacitance measurement: 9.999nF ± (5.0%+20), 99.99nF/9.999uF/9.999uF/9.999uF/9.999uF ± (2.0%+5), 9.999mF ± (5.0%+5)

  Frequency measurement: 99.99 Hz/999.9 Hz/9.999 kHz/99.99 kHz/999.9 kHz/9.999 MHz ± (0.1%+2)

  Working mode: automatic, manual

  Maximum indication: 6000

  Display: LCD

  Power supply: 2 AA 1.5V batteries

  Safety level: CAT III 600V, CAT II 1000V

  Material: ABS

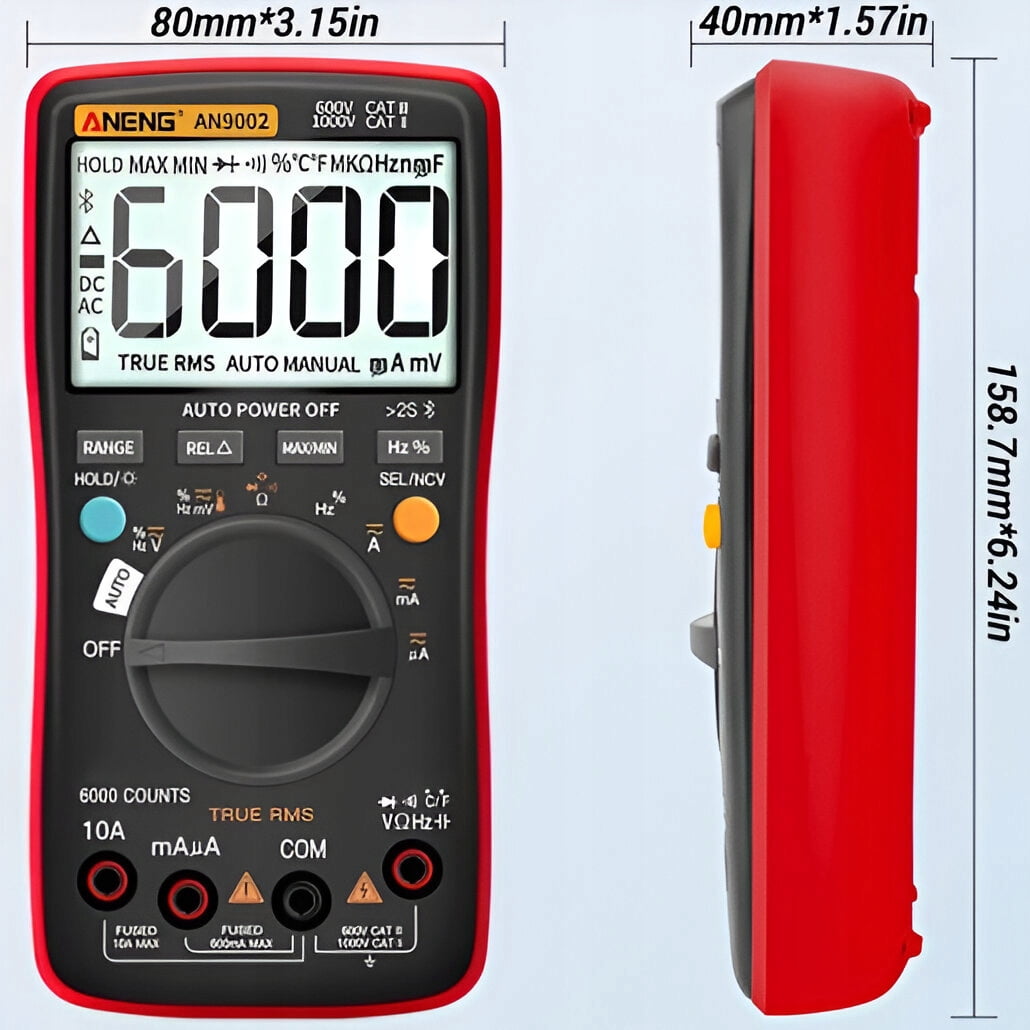

  Dimensions: 158.7 x 80 x 40 (millimeters)

  Weight: 195.5 grams

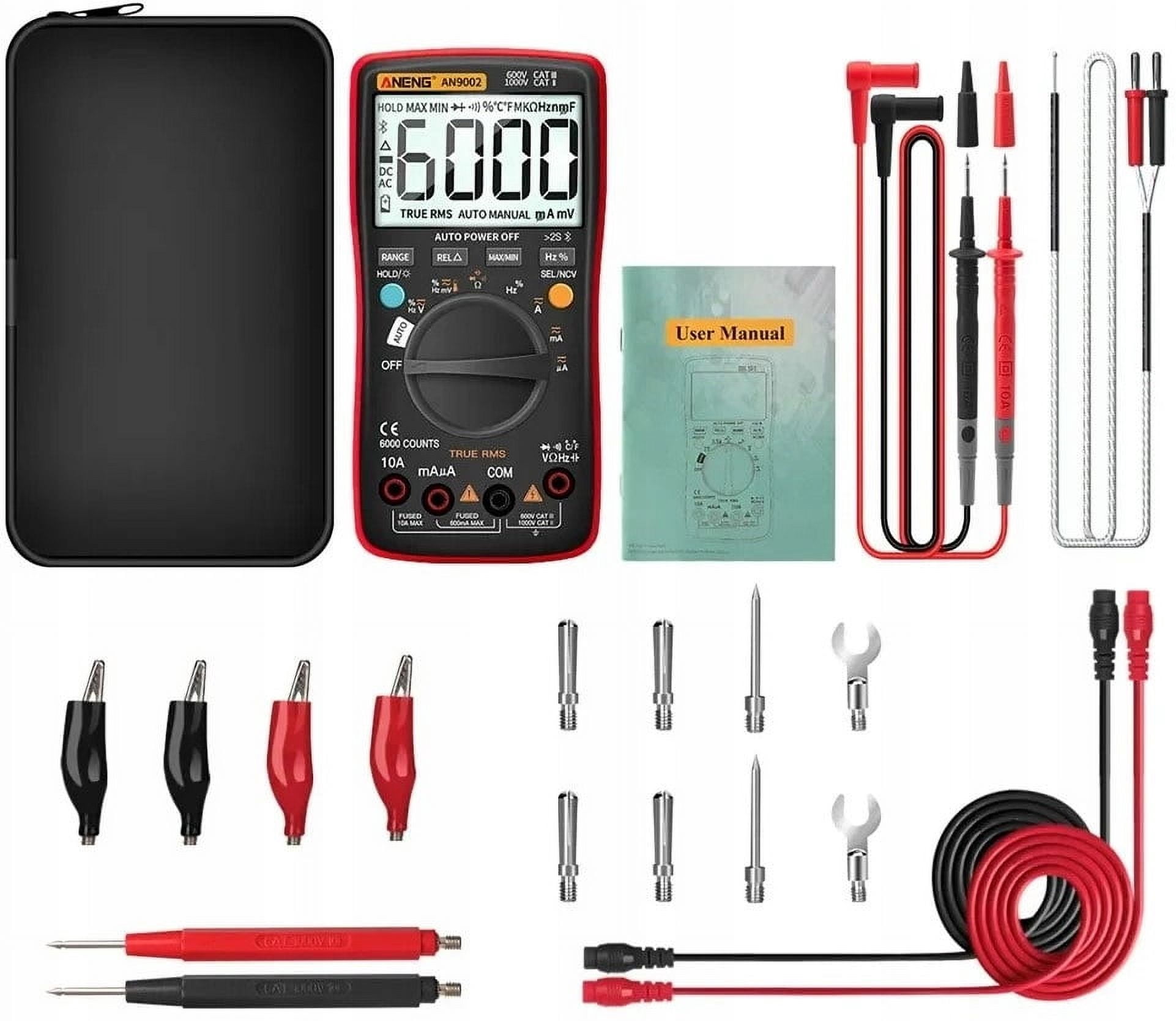

• ➡  Packaging content:

  Anneng AN9002 Multimeter

  Measuring cables

  Temperature measurement probe

  Accessory set (as shown in the picture)

  case

  (No box - the multimeter and accessories are packed in a black box)
